Ozone Destruction Catalyst (GTODC-GT)


GTODC-GT catalyst is made of manganese copper based composite metal oxide. The process and materials are updated, and the catalyst has a higher ozone decomposition activity. It is made into clover strips, the surface area is increased by 25%, the porosity is increased by more than 30%, and the wind resistance of the catalyst is reduced under the same conditions.


Technical Parameters

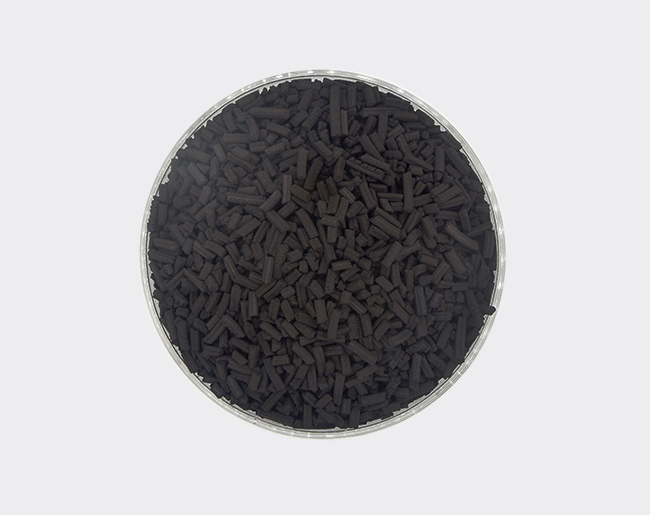

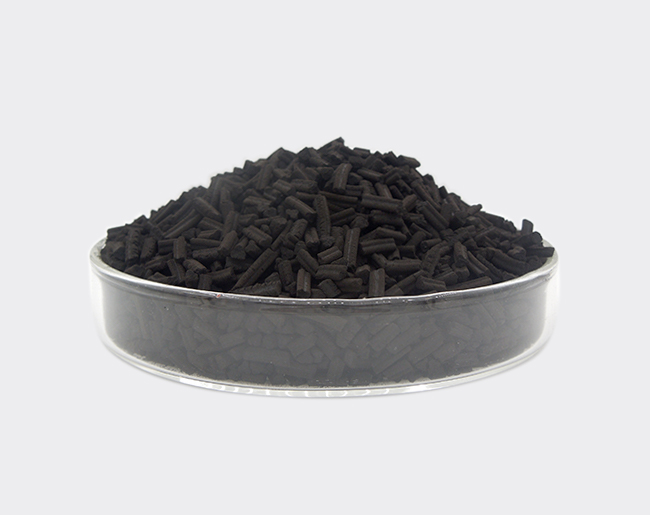

Appearance Black clover strips Applicable Humidity ≤90%
Product size φ(2-4mm)*(5-15mm) Applicable Airspeed
10,000-50,000 h-1
Supports Material None Working Temperature ≥70 °F
Coating Material Manganese-based composite metal oxide Purification efficiency 95-99.9%
Bulk Density
700-900 kg/m3
Purification Depth 0.1 ppm
Specific Surface Area
≥1,000 m2/g
Service Life 1-3 years
Suitable O3 Concentration ≥1,000 ppm Product Packaging Bag or Barrel

Advantage

1, Higher Ozone Decomposition Activity

GTODC-GT catalyst is made of manganese copper based composite metal oxide. The process and materials are updated, and the catalyst has a higher ozone decomposition activity.

2, More Effective Appearance

GTODC-GT is made into clover strips, the surface area is increased by 25%, the porosity is increased by more than 30%, and the wind resistance of the catalyst is reduced under the same conditions.

3, High Temperature Resistance

GTODC-GT catalyst does not use carbon, which will not cause a large amount of heat to be generated during the ozone decomposition process and cause the catalyst to burn and pulverize.

4, High Moisture Resistance

GTODC-GT catalyst is made of a composite metal oxide with catalytic activity, and it works normally in an environment with a relative humidity of 90%, and its service life is greatly increased.


Precautions

1, Catalyst Installation

When the ozone destruction catalyst is used in the reactor, the minimum thickness of the catalyst layer is 50mm, the gas pipe does not flow shortly and the air is leaked, and all the gas passes through the catalyst layer.

2, Particle Filtration

Before the exhaust gas enters the catalyst layer, it is necessary to filter the particulate matter to avoid long-term accumulation of dust on the catalyst and cause the catalyst to fail.

3, Catalytic Temperature

The catalyst can catalyze the decomposition of ozone into oxygen at room temperature. Appropriate heating can help increase the rate of catalytic reaction. The effect is better when used at (40~80℃).

4, Restore Catalytic Activity

After the catalyst has been used for a certain period of time (for example, about one year), if the activity of the catalyst is found to be reduced due to the long-term accumulation of adsorbed moisture, the catalyst can be taken out, dried in an oven at 100°C for 6 hours or more, and then reloaded for use.


Use Scenes

1, Decomposition of ozone tail gas from ozone generator.

2, Decomposition of ozone produced by corona treatment, plasma treatment or uv-curing etc.

3, Space ozone eliminating of copier & printer, medical equipment, aircraft cabin, etc.

4, Ozone Removal in Industrial Waste Gas Emissions.
